Water Activity Meter AW-1s

This is a compact and lightweight water activity measuring device, ideal for portability. By placing a sample into the sample container with a sensor and connecting it to the main unit, measurement starts. It uses detachable sensor-equipped sample containers, available in two types: capacitive, which provides precise measurements over a wide range, and electrical resistance, which has high alcohol resistance. You can choose based on the type of sample and application. If the sensor deteriorates, it can be replaced. Please use it in combination with one of the two optional sensor-equipped sample containers available separately.

Feature
· Compact and lightweight, ideal for portability
· Capable of measuring powders and liquids
· Measurements can be taken by inserting a sample container with either a capacitive or electrical resistance sensor (sold separately) into the device
· Offers two modes: Stability Mode (standard measurement) and Quick Mode (short-time measurement)
· Allows 1- to 3-point calibration
· Stores up to 99 measurement values in the deviceDedicated PC software enables setting measurement modes, retrieving logged data, and performing calibrations.
· Operating Systems: Windows 10 & 11

Applications
· Food, pharmaceutical, and cosmetic industries
· Practical training in educational settings
· Development of new products
· Prototyping and evaluation
· Quality control in manufacturing processes
· Quality verification of raw materials
· Pre-shipment inspection, etc.

【For accuracy verification before measurement】
"Introducing Saturated Salt for AW (water activity)"

Information by Item Code (Specifications)

Item Code060990-030
ModelAW-1s
Measurement Range (mg /kg)Communication Function
PC Dedicated Software via USB Connection
Measurement ModeTwo Modes (Stability Mode, Quick Mode)
Data LoggingStores up to 99 Measurements
(Water activity, cell temperature, ambient temperature, ambient humidity)
Battery Operating TimeApproximately 60 hours
(When using AA alkaline batteries)
Measurement TimeStability Mode: Approximately 5 to 30 minutes
Quick Mode: Approximately 6 minutes
Power Supply4 AA alkaline batteries or USB (micro-B) port
Dimensions/WeightApproximately 80 (W) × 45 (D) × 115 (H) mm (excluding protrusions), 270g (including batteries)
AccessoriesUSB cable (A-microB)
Price (excluding tax)Contact us
NotePlease download the communication software from the bottom of this page.
Measurement time may vary depending on the sample.

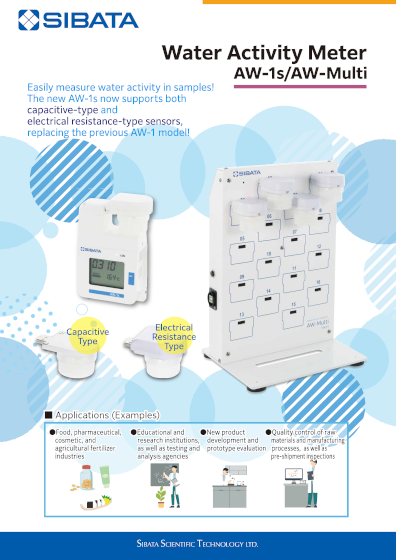

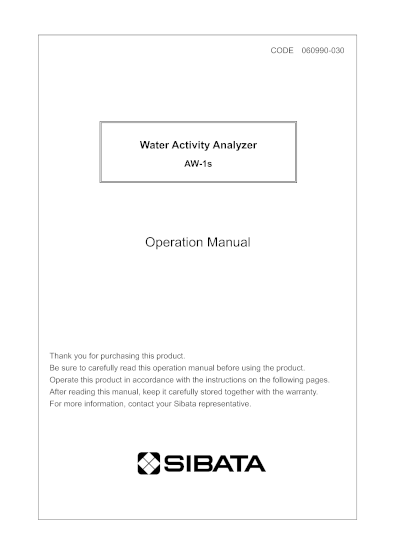

AW-1s_AW-Multi_enOperation Manual AW-1s
