Multiple Water Activity Meter AW-Multi 8CH

Water activity is the critical parameter for food quality and safety of various products from foods to pharmaceuticals. Water activity measures the amount of “free” water in a product, the water available for microbial growth and chemical reactions, making it possible to predict product stability, shelf life, and safety.

AW-Multi is a water activity Meter designed to measure multiple product samples simultaneously. With AW-Multi, water activity of up to 16 samples can be measured.

【Features】
●Measures up to 8 samples simultaneously.
●Custom software available
●Uses the same Sensor-equipped Sample Container as the model AW-1s
●Alarm to notify the measurement completion
●Two modes of measurement: Stability Mode and Quick Mode
●Automaticaly stores measured data on PC in CSV format
(Compatible operating systems: Windows 10, 11)

【Application】
●Food, pharmaceutical, cosmetic, and agricultural fertilizer industires
●Educational and research institutions
●New product development and prototype evaluation
●Quality control of raw materials and manufacturing processes
●Pre-shipment inspection

【For accuracy verification before measurement】
"Introducing Saturated Salt for AW (water activity)"

Information by Item Code (Specifications)

Item Code060990-008
ModelAW-Multi 8CH
Measurement RangeWater activity: 0.001 - 1.00(Capacitive Sensor-Equipped Sample Container)
Water activity: 0.200 - 1.00(Electrical Resistance Sensor-Equipped Sample Container)
Cell interior and ambient temperature: 0 - 80℃
Ambient humidity: 10 - 95% rh
Measurement ModeStability Mode (standard mode)
Quick Mode (short-time predictin mode)
CommunicationCustom PC software via USB connection *2
Number of samplesUp to 8 samples
Data LoggingAutomatically saves to PC
(water activity, temperature inside the cell, ambient temperature, ambient humidity)
Power SupplyAC100～240V　50/60Hz - 0.5A
Dimensions/WeightApprox. 210(W) x 180(D) x 315(H) mm
Approx. 2 kg
Price (excluding tax)Contact us
Note*1: 0.12 to 0.97 aw/Stability Mode; ± aw after calibration; during measurement with the same conditions as during calibration. This excludes conditions in which the sample contains alcohol.
*2: Download the custom software from the Sibata website.
*3: The measurement time differs depending on the sample.

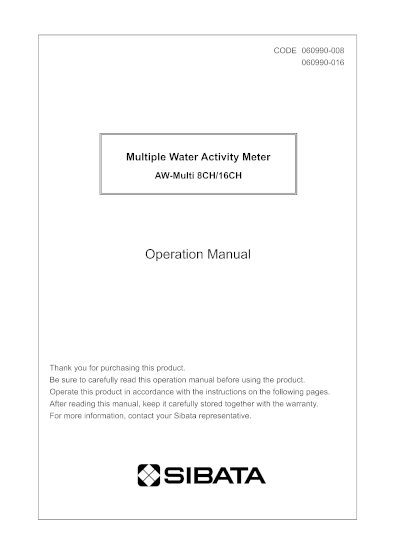

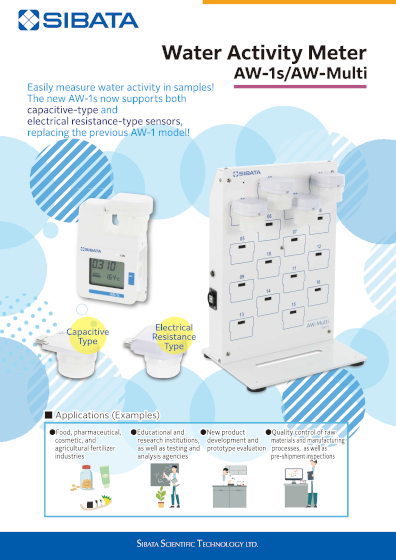

CatalogManual
