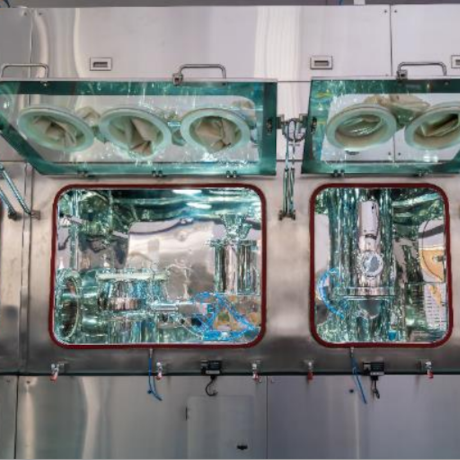

Negative Pressure Isolator


  • F+ offers Negative Pressure Isolator for custom applications across OSD, Injectable, QC including inline process, non-sterile powder handling, R&D and aseptic processes

  • Negative pressure is maintained from -30 to -20 Pa, to prevent particles from escaping the isolator

  • This serves as the physical barrier, but also a dynamic pressure barrier to protect the cleanroom from cross contamination and maintain cleanliness

  • Supervisory Control and Data Acquisition (SCADA) compatible

  • Integration of process equipment is 21 CFR compliant

  • PLC-based control system and custom-built validation protocol





Special Features

  • Elimination of environmental contamination

  • Use of proven components guarantees high process reliability and stability – optimal basis for the construction of containment components

  • Protection from product contamination

  • Fast, easy cleaning

  • Significantly reduced risk of cross-contamination

  • Designed for OEB/OEL 5

  • Certification & Compliance: GAMP5, CE, ATEX, cGMP compliant

  • Body, work area base and read panel fully manufactured from SS 316 complete with interlocked type ‘D’ transfer hatches

  • PLC/Manual Control system with differential pressure gauges

  • LED concealed light providing light intensity in excess of 400 Lux

  • Audible and visual alarm with clear and informative display
