LOGTAG PRODUCTS

ENVIROLOG

Single-use temperature data logger for reliable and cost-effective monitoring of temperature-sensitive products during transport.
Measurement range of -30 °C to +70 °C (-22 °F to +158 °F)
integral USB connector

HASO
8

Single-Use Humidity & Temperature Data Logger
Record high resolution Temperature and Humidity readings simultaneously.
Up to 8,000 paired humidity and temperature recordings.
‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms.
Ideal for transportation applications.

HAXO
8

Multi-Trip Humidity & Temperature Data Logger
Record high resolution Temperature and Humidity readings simultaneously.
Up to 8,000 paired humidity and temperature recordings.
‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms.
For multiple applications use.

LTI
HID

Desktop USB Interface Cradle
New and improved design to replace the current LTI-USB Interface Cradle.
Uses drivers from Windows OS so no need to install proprietary drivers.
Compatible with all standard LogTag products.
LED Indicators to identify what action the Interface is performing.

SRIC
4

Single-Use Temperature Data Logger
Single trip Logger for short or long haul transportation applications.
4000 reading memory capacity with up to 20 months battery life.
‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms.
Industry best download time – less than 4 seconds for full memory.

SRIL
8

Single-Use Low Temperature Data Logger
Records temperature from +40°C to as low as -80°C.
Single-trip dry ice Temperature Logger.
8000 readings. Rated for a typical trip of 2 weeks at dry ice temperatures.
‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms.

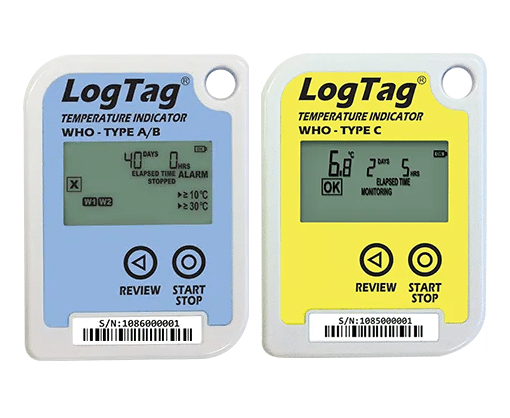

TIC20 WHO

Temperature Indicator With 40-Day Display
4 WHO PQS Pre-qualified models available.
At-a-glance summary with ‘OK’/’Reject’ alarm status.
Review statistical data on device for up to 40 days prior.
Non WHO TIC20 Indicator available on request.

TICT IS0°TAG

Freeze Temperature Indicator
WHO PQS Pre-qualified model available.
‘Tick’/’Cross’ display shows temperature exposure below freezing point.
Collect daily minimum/maximum temperature statistics for up to 3 years.
Logged, time stamped recordings before & after alarm event.

TICT

Temperature Indicator With 4 Alarms
2 upper and 2 lower temperature alarms.
‘Tick’/’Cross’ display shows temperature alarm status.
Collect daily minimum/maximum temperature statistics for up to 45 days.

TRED30
16CP

Kolay okunabilir LCD ekran ve 30 günlük özet
Dahili sesli alarm
Kullanıcı tarafından değiştirilebilir madeni para pil.
15.900 kayıt kapasitesi 66 gün @ 6 dakika kayıt için yeterli bellek
Kalibre edilebilir harici sıcaklık sensörü (Smart Probe veya ST100 sensörü)

TRED30
16R_VACCINE KIT

External Probe LCD Temperature Data Logger
Kit includes: TRED30-16R, ST100K-15 Ext Probe, Buffer bottle, wall mount bracket & NIST Traceable Calibration Certificate.*
New, easy to read LCD display with 30 day summary.
Up to 15,900 recordings – Enough memory for 66 days at 6 minute logging.
Built-in audible alarm.

TREL
8

Low Temperature External Probe Data Logger
External Probe with high quality gold plated connector.
Records temperature from +40°C to as low as -90°C.
Versatile, wide range, multi-trip temperature logger.
8000 readings memory capacity with up to 3 years battery life.
‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms.

TREL30
16

Low Temperature External Probe LCD Data Logger
Easy to read LCD display with 30 day summary.
Calibrated Smart Probe Ready.
Stores up-to 15,900 readings.
Built-in audible alarm.
Measurement range from -90°C to +40°C (-130°F to +104°F).

TREX
8

Multi-Trip External Probe Temperature Data Logger
Interchangeable External Probe with high quality gold plated connector.
8000 reading memory capacity with up to 3 year battery life.
‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms.
Industry best download time – less than 5 seconds for full memory.

TRID30
7

Multi-Trip LCD 30-Day Temperature Data Logger
30 day On-screen summary in calendar-like summary.
Up to 7,650 recordings – Enough memory for 53 days at 10min logging or 80 days at 15min logging.
Industry best download time – less than 5 seconds for fully memory.
Comprehensive customisation options including alert settings, sample interval and trip duration.

TRIL
8

Multi-Trip Low Temperature Data Logger
Records temperature from +40°C to as low as -80°C.
Versatile, wide range, multi-trip Temperature Logger.
8000 readings memory capacity with up to 3 years battery life.
‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms.

TRIX
16

Large Memory Multi-Use Temperature Data Logger
16,000 readings memory capacity with up to 3 years battery life.
‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms.
Industry best download time – less than 10 seconds for full memory.

TRIX
8

Multi-Use Temperature Logger
WHO PQS Pre-qualified under E06/06: PQS CODE E006/00.
Versatile, wide range, multi-trip Temperature Logger.
8000 readings memory capacity with up to 3 years battery life.
‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms.
Industry best download time – less than 5 seconds for full memory.

UHADO
16

Multi-Trip USB Humidity & Temperature Data Logger
Record and display Temperature and Humidity readings simultaneously.
Up to 16,000 sets of humidity and temperature recordings.
Automatically generates a PDF report without special software.
Audible alarm & red LED signals a temperature alarm.

USRIC
16

Single-Use USB PDF Temperature Data Logger
Up to 16,000 recordings – enough for the longest trip.
Integral USB connector – no separate Interface Cradle required.
Suitable for multiple independent receivers, clinical trials and last-mile distribution.
Automatically generates a PDF report – no special software required.

USRIC
4

Single-Use USB Temperature Data Logger
Integral USB connector – no separate Interface Cradle required.
Automatically generate a PDF report using the USRIC-4 PDF generator.
User configurable options – no need to buy a special recorder for each application.
4000 reading memory capacity with 6 months operating life from the time of configuration.

USRIC
8

Single-Use USB PDF Temperature Data Logger
Built-in integrated USB connector without the need for a separate Interface Cradle.
Data is viewable in LogTag® Online without the need for an account.
Automatically generates a PDF report – no special software required.
Up to 8,000 recordings – enough for the longest trip.

USRID
16

Single-Use USB PDF LCD Temperature Data Logger
Integral USB connector – no separate Interface Cradle required.
Suitable for multiple independent receivers, clinical trials and last-mile distribution.
Automatically generates an encrypted LogTag data file for a more detailed analysis.
Up to 16,000 recordings – enough for the longest trip.

USRID
16W_WHO PQS

Single-Use USB PDF LCD Temperature Data Logger
WHO PQS pre-qualified E006/070.
Stores 40 days of temperature recordings data, factory set with a 5 minute logging interval.
Automatically generates a PDF report and an Excel data file – no special download software required.
Display showing temperature and alarm status of up to 3 alarms.

UTRED
16F

External Probe USB PDF LCD Temperature Data Logger
Display showing temperature and alarm status of up to six alarms.
ST100 probe is a mandatory accessory for the UTRED-16F to operate correctly.
Cost effective multi-use format with a two year battery life.
Automatic generation of a PDF report as a permanent record of the data.
UTRED-16 CDC / VFC Kit available.

UTRED30
16

Dual-Channel LCD Temperature Data Logger
Measures and stores up to a total 32,000 temperature readings, 16,000 readings per channel.
Reset Min/Max temperature reading at any time.
Audible alarm & red LED signals a temperature alarm.
View alarm status for up to 30 days at a glance.

UTRED30
WIFI

Multi-Trip Single-Channel LCD WiFi Data Logger
Up to a total of 16,000 temperature readings.
Reset Min/Max temperature reading at any time.
Audible alarm & red LED signals a temperature alarm.
Real-time data automatically uploaded via Wi-Fi to LogTag Online.
Vaccine Kit available.

UTREL30
16

Multi-Channel Low Temperature LCD Data Logger
Measures and stores up to a total 32,000 temperature readings.
Reset Min/Max temperature reading at any time.
Audible alarm & red LED signals a temperature alarm.
View alarm status for up to 30 days at a glance.

UTREL30
WIFI

Low Temperature Dual-Channel LCD WiFi Data Logger
32,000 total temperature readings, 16,000 readings per channel.
Audible alarm & red LED signals a temperature alarm.
Real-time data automatically uploaded via WiFi to LogTag Online.
Vaccine Kit available.

UTRID
16

Multi-Trip USB PDF Temperature Data Logger
Ideal for multi-stage distribution channels involving bulk through to “last-mile” stages.
Display showing temperature and alarm status of up to six alarms.
Durable, reliable USB connector with gold plated contacts, designed for multiple insertions.
Automatically generates a PDF report and an Excel data file – no special download software required.

UTRIX
16

Multi-Trip USB PFD Temperature Data Logger
Automatically generates a PDF report and an Excel data file – no special download software required.
Automatically generates an encrypted LogTag data file – for a more detailed analysis.
Durable, reliable USB connector with gold plated contacts, designed for multiple insertions.
Up to 16,129 recordings – provides over 3 months logging at 10 minute sample intervals.

VAXTAG

Multi-Trip LCD Temperature Data Logger | WHO PQS
WHO PQS listed under E006 devices : PQS Code E006/013.
Pre-configured parameters to match WHO requirements.
30 day statistics summary reviewable on device display.
Stores up to the last 7770 time stamped temperature data for later download.
